Graphics One Edition - Epson T3170x 24" Desktop Film Output System_

In stock and ready to ship

GO T3170x SP Screen Print System

24-inch Screen Print Turnkey Film Positive System (Shown with optional stand). This version comes with Cadlink's Film Maker Software.  RIP software and Graphics one One Year In House Warranty.

Key Features

• 24-inch Inkjet Printer for Color Separation and Film Positive Imaging

• MicroTFP 4-Channel, Drop-on-Demand Printhead Technology

• Maximum Resolution of up to 2400 x 1200 dpi for Incredibly Sharp Text and Line Art

• Ultra Fast Print Speed--Up to 34 Seconds for A1/D Sized Prints (23.39” × 33.11”)

• Accepts Rolls Up to 24-inches in Width and Cut-Sheet Up to 11” x 17” by Auto-Feeder

• Cartridge-Free Printing Technology--Quick and Easy Ink Refills

• User-Friendly and Intuitive 4.3-inch Color LCD Screen--Simplifies Print Tasks

• Includes Three (4) 140ml Bottles of GO ScreenMate™ TFP Color Separation Inks--Black

• GO ScreenMate™ Inks Absorbs 99.9% of All UV Light and are Made in the USA

• Includes One (1) Roll of 24” x 100’ GO ScreenMate™ Color Separation Film--5 Level  Microporous Coating for Great Density, Dot Control and Waterproofing

• Includes CADLink® FilmMaker RIP Software with Full Array of Screen Print Tools and Full Screen Configurations Or PrintFab XL

• Perfect System for Producing Film Positives/Negatives for Color Separations

Product Overview

GO T3170x SP is a high performance, full-solution 24-inch professional inkjet system for color separation. With a maximum printing and media width of up to 24-inches and a maximum resolution of 2400 x 1200 dpi, GO T3170x SP is perfect for producing incredibly sharp text and line art. In addition, the GO T3170x SP is unique in that it is the first large format printer to incorporate the cartridge-free printing. This 24-inch printer utilizes the latest MicroTFP printheads. In addition, to offer inks that were developed specifically for EPSON® MicroTFP print heads. With the launch of GO T3170x SP system, Graphics One is again leading the market with a 24-inch film positive solution for screen printers.

Ideal Application

The most common applications for commercial screen-printing are silk screen t-shirts, posters, stickers, signs, banners, ring binders, mouse pads, promotional items and exhibition displays.

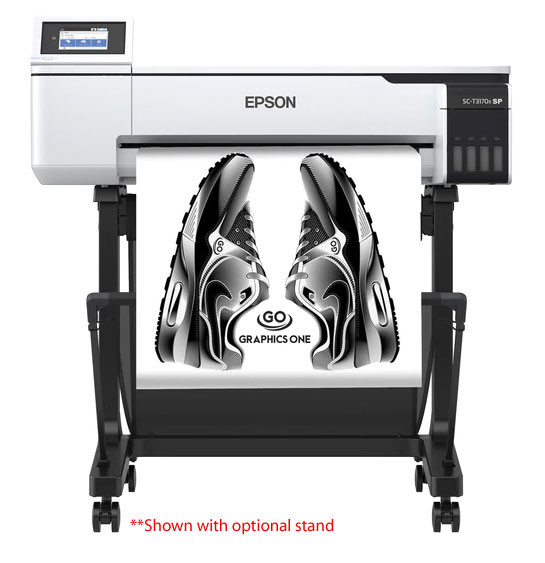

 ** Shown with optional stand (Stand is an additional $259)

Technical Specifications

Shipping: Flat rate shipping is for commercial properties with dock or fork lift. Residential properties and lift gate are extra. Please contact us for estimate.

Our feedback on this system:

We test, use and sell quite a few film output systems and when it comes to ease of use and low maintenance this is about the best machine we have ever used. If you have ever used a refillable ink system you know the issues that come along with maintaining the ink levels and resetting the chips. This printer takes the guess work out of it, no chips to reset or cartridges to leak or fail. Using our specially designed bottles that pour ink directly into the machine you eliminate the hassles and expense of cartridges. This machine also prints fairly quickly, a 17"x22" sheet will print in about a minute at 2400dpi.  We have experience no registration issues with both sheets and rolls. The ink density averages around 3.5 on the dmax scale, a dmax minimum of 2 is required to burn a screen and 3.0 to hold halftone dots. Overall we give this system a solid A.
